Viper 100/200 Customers installations

(Click on pictures to enlarge)

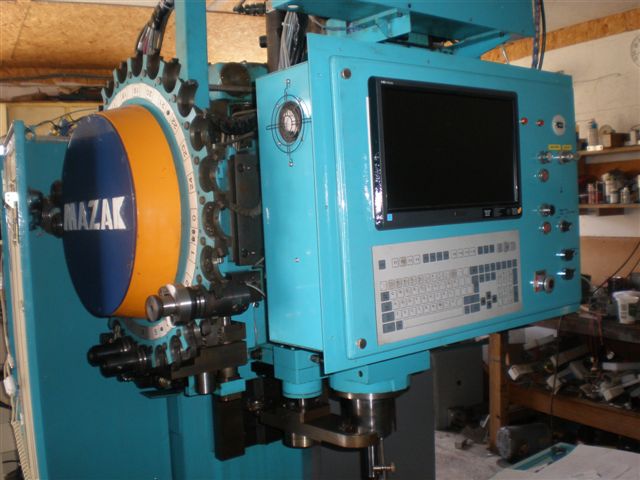

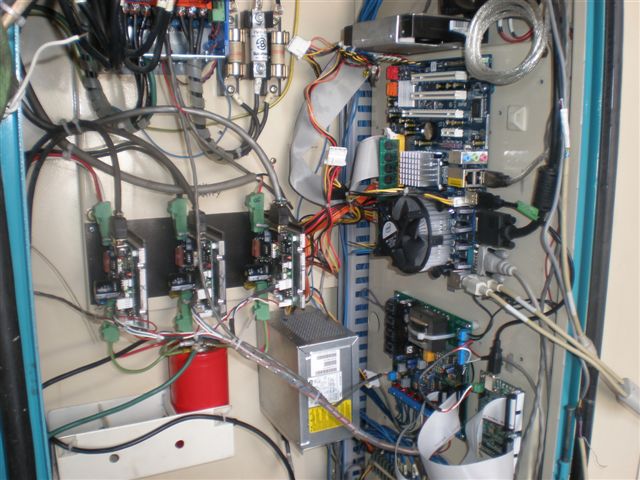

Mazak Machining center running 3 Viper 200's

The Vipers with Mach 3 run this precision machine up to 500 ipm

An ATC is being implimented using a PLC

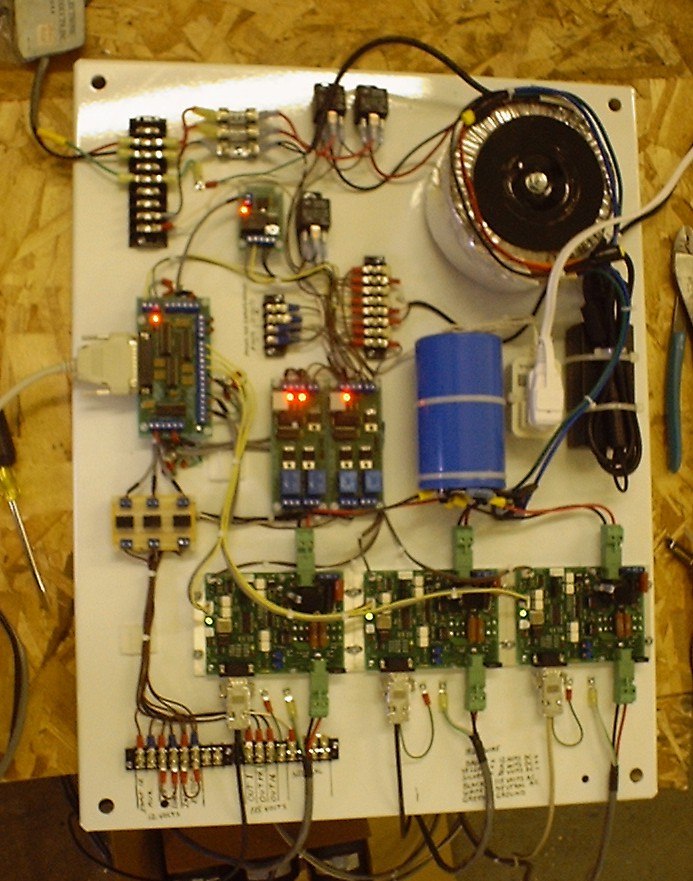

Bridgeport Mill retrofit using 3 Viper 200's

Nice layout on mounting plate fits right into existing cabinet.

Mach 3 breakout board

Very clean , keeping power wires short and noisy wires separate from sensative ones.

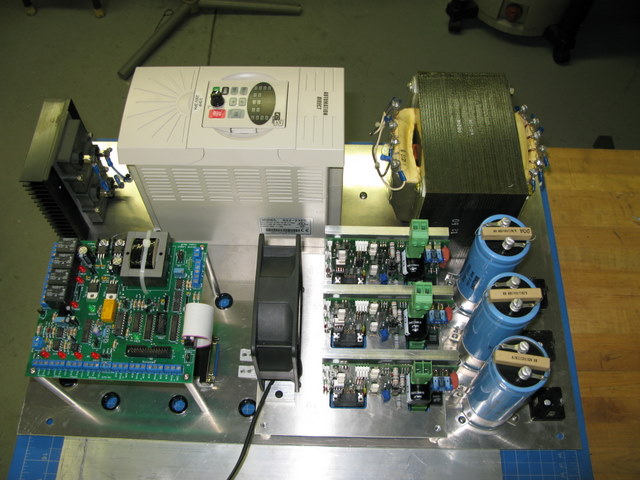

Laguna Mill retrofit using 3 Viper 200's

Campbell breakout board for Mach 3

Note, capacitors close to drives with bleed resistors, Fan cooling.

Laguna Mill retrofit . This mill is in like new condition.

Hurco Mill retrofit using 3 Viper 200's

PC4CNCbreakout and combo boards board for Mach 3.

The 3 Vipers 200's are edge mounted for easier cableing.

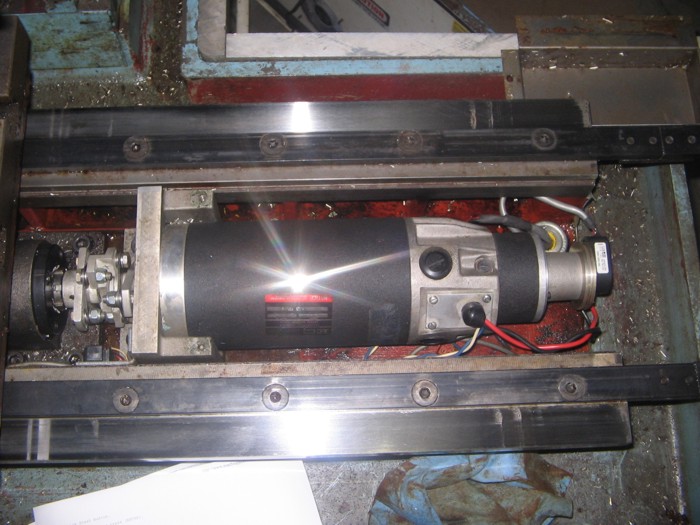

This Hurco uses Electrocraft motors running at 160 volts. US digital encoders replaced the old ones.

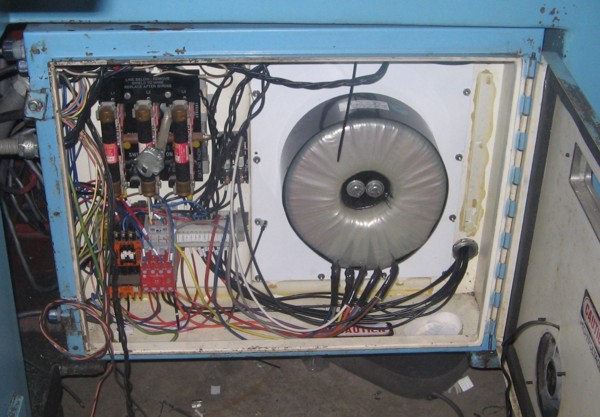

The origional powersupply was used.

Sharnoa Kneemill retrofit

Using 3 Viper 200's and Mach 3 . See how the PC is right in the control cabinet.

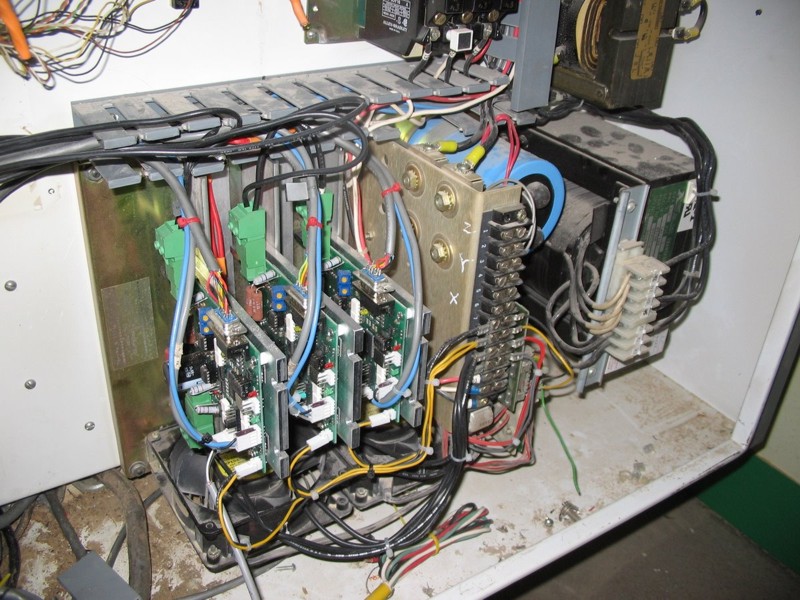

Compu-Mill retrofit

Bring life back to an old mill using 3 Viper 100's. This one has a pnematic drawbar.
5 axis cnc router with Viper 100 servo drivers, Used in this OEM cnc controller.
