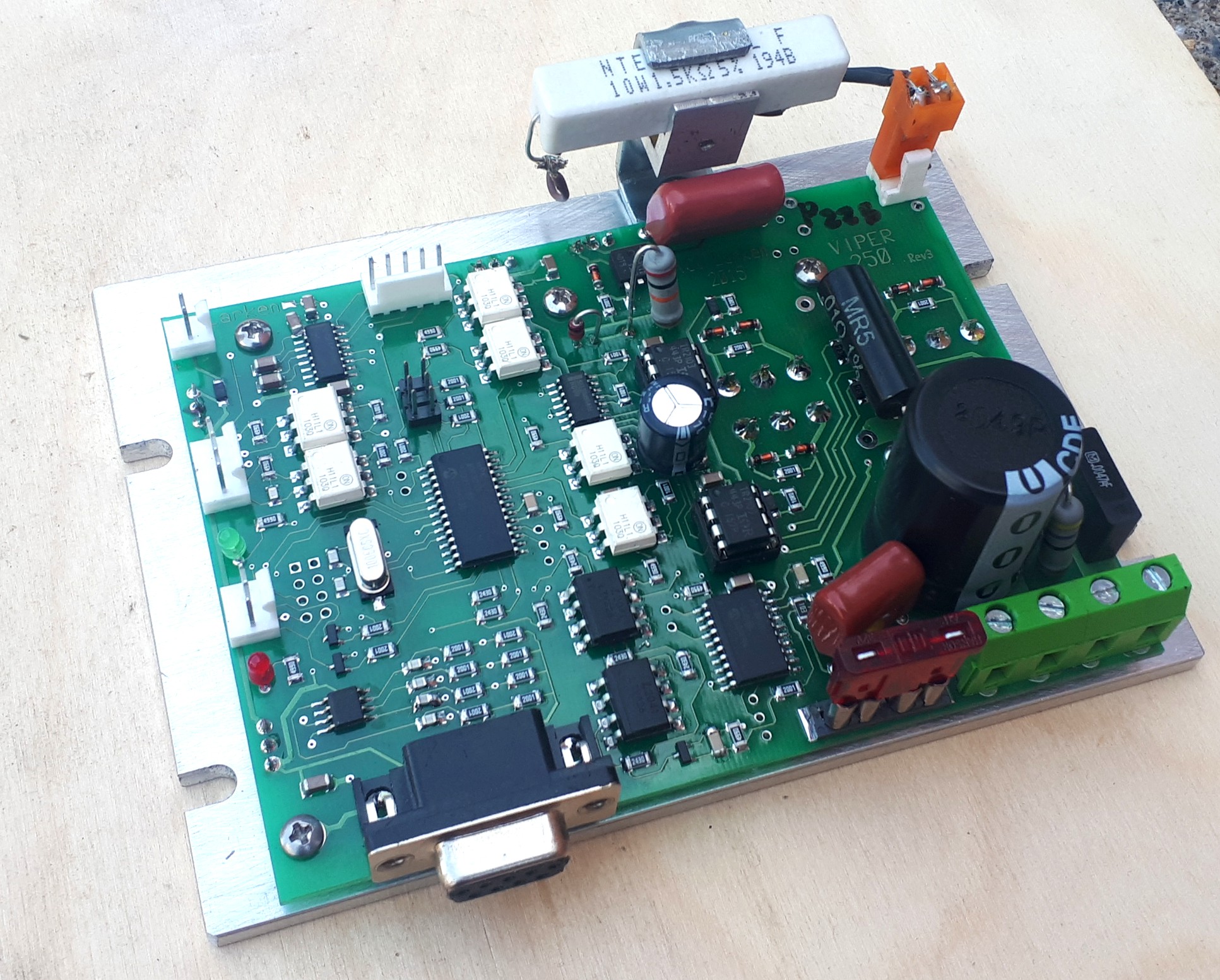

Viper 260 HV (230Vdc 25A)

- High voltage drive for japanese machining centers like Mazak
with meldas 220 volt servo motors.
- Step and Direction input for use with Mach3/4 , Linux cnc etc ,Acorn etc
- uses High power IGBT transistors
- Full featured Industrial quality DC servodrive
- Recommended for Nema 42 and 56 and larger motors
- Max working voltage 240 Vdc ( 100vdc minimum)
- 45 amps peak current, 25Amps continuous
- 32 bit PID control with 16 bit RISC processor
- Velocity Feed-forward for low error
- Warning output signals excessive motor load (slow down)
- Fault output signals drive has tripped
- Opto isolated Step and Direction inputs
- Opto isolated Control and Power sections
- Onboard fuse (protect motor and for safety)
- 2,4,8 step multiplier (or any size)
- Settings are programmable by RS232
- All connectors included
- 90 Moneyback Satisfaction Guarantee

Viper 200 Info page
View Viper 200 Installations
Viper 200 PDF Manual

Quantity Price
1-10 $259.99
11-25 $249.00
- 6061 aluminum heatsink base
- 60 Day warrantee
- Easy tuning with our ViperTune software

Larken's new Viper Servo drive is the most advanced Step-servo drive available. They are compatible with all step and direction software such as Mach3 , TurboCNC, Smooth-stepper etc.
This Smooth, Silent high speed drive is ideal for Milling Machine and Lathe retrofits and Large CNC router and Plasma tables running large size Nema 34 ,42 and 56 motors.The drive has a isolated power and control sections for eliminating ground problems.
