Specifications
- Closed Loop "Correcting" Stepper motor drive
- Works with any 500 or 1000 line encoder
- Step resolution can be set for 500,1000 or 2000 steps/turn
- Working voltage 35-60 volt DC
- Current programmable from 2-5.5 amps/phase
- 16 bit DSP processor
- Fault output signals drive has tripped
- Opto isolated Step and Direction inputs
- Onboard fuse (protect motor and for safety)
- Settings are programmable by RS232
- Flat or Edge card type mounting
- 6061 aluminum heatsink base
- 60 Day warrantee
-
Download Cobra SV 60 PDF manual Here
Download CobraTune software here Here
Watch Video Tutorial on Youtube
| Quantity |
Price |
| 1-10 |
$99.99 |
| 11-25 |
$94.99 |

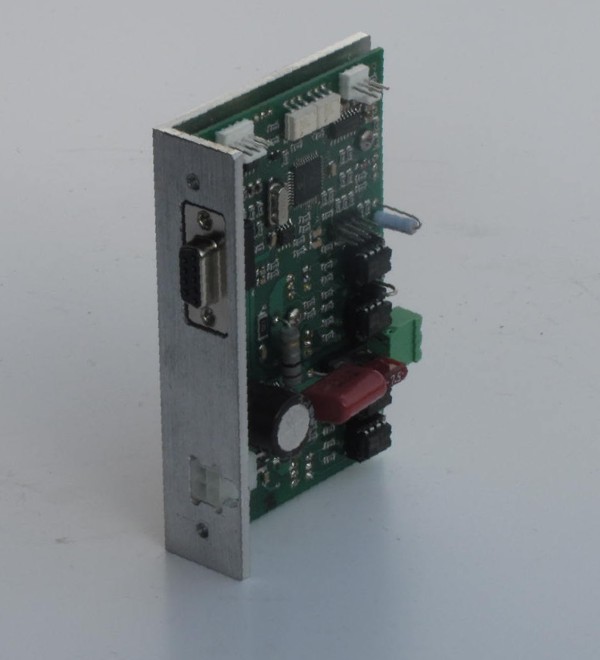

Finally stepper motor drive systems don't need to loose position and ruin your work. This drive will correct loss of steps, and restore position. Larken's new Cobra closed loop stepper drive will increase the performance and reliability of almost any stepper machine, just by adding an encoder They are compatible with all step and direction software such as Mach3 , TurboCNC, Smooth-stepper etc.
It can use any 500 or 1000 line differential or single ended encoder, although we recommend differential encoders for the best noise rejection.
|
|
